Carthago Chic e-line

Chic e-line

The A-class chic e-line impresses with its unique “emotionale” furniture design, the two level room concept and the tremendous living area height of 211 cm. The self-sufficiency champion is more exclusive and comfortable than ever before. The large round seating area with luxury living area table and wide side seat bench invites you to spend time in the living area. The comfort corner kitchen has a pull-out kitchen work surface with worktop extension. The comfort luxury bathroom of the A-class chic e-line scores points with a completely separable changing room, creating sufficient room and privacy for undisturbed freshening up. The large, heated double floor with a usable height of up to 70 cm provides a sufficient amount of storage space. This is conveniently accessible from both the outside and the inside.

More comfort, more self-sufficiency, more independence.

THE CROWN JEWEL OF THE CARTHAGO LINER CLASS

THE CROWN JEWEL OF THE CARTHAGO LINER CLASS
Different layouts, two basic vehicles, plus two worlds of style and numerous worlds of living in the interior are available for fulfilling your individual requirements. This luxury motorhome leaves nothing to be desired, and impresses with its appealing design and outstanding living comfort. Discover the diversity, and design your chic e-line motorhome completely in accordance with your requirements.

chic e-line XL I The XL crown jewel with maximum payload reserves

The XL layouts of the A-class chic e-line with double axle and permissible gross weight of up to 5.5 t score points with even more comfort on your travels. This begins with the XL round seating area with the long, pull-out side sofa, and continues with the XL bathroom with separate toilet room, open washing area, spacious round shower and completely separable changing room.

Chic e-line I Highlight.

DOUBLE FLOOR WITH LARGE STORAGE

More storage space – more room for your holiday! Thanks to the unique double floor and many extra-deep storage compartments, the A-class motorhomes in the chic e-line model range have plenty of room for your entire holiday luggage! We don’t just concentrate on volume alone during development, but also ease of access during loading and unloading, and protection from frost.

Your advantages at a glance

  • Double floor with large heated storage compartment with usable height of up to 70 cm
  • Outside access via several large hatches
  • Convenient access from the inside via the L-shaped lounge seating area seat bench cover, the swing-up side seat bench (depending on the model) and the large living area floor hatch
  • Large, central through-loading space (interior height 22 cm), with extra-low storage compartment (usable height 46 cm), also conveniently loadable through the XL habitation door via a large, self-supporting living area floor hatch
  • The entire double floor is heated with a climate storage function and underfloor heating effect

Chic c-line I layouts & 360° experiences.

You are guaranteed to find the right layout, including all of the associated technical data, using our practical filter function. And/or you can immerse yourself in our new, interactive 360° tours and discover your fully integrated motorhome with all of its special features.

MERCEDES - BENZ

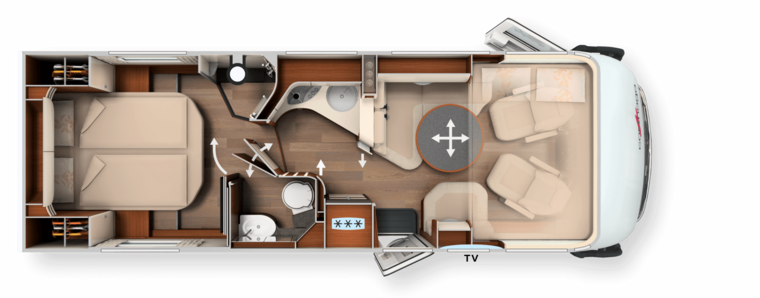

chic e-line Mercedes-Benz Sprinter | 51 QB DA

Special Features

  • Large front round seating area with luxury living area table and wide side seat bench
  • Large comfort corner kitchen with curved work surface
  • Slide-out storage cabinet integrated in round washroom wall
  • Changing room separable via luxury washroom door with 3-way function thanks to washroom double door and pull-out TV wall and room divider
  • Extra-large queen-size bed in 200 cm king-size format, comfortable sleeping width as far as the foot area
  • Two wardrobes at each side of the queen-size bed
  • Two large drawers at the front of the queen-size bed

Technical Data

Standard chassis
Mercedes-Benz AL-KO DA low frame 414 CDI
Basic motorisation
Diesel 2,0 l (170 HP/130 kW)
Total length
8070 mm
Total width
2270 mm
Total Height
3105 mm
Wheelbase
3920/800 mm
Double floor height / double floor storage compart- ment
220/460 mm
Standing height in living area
2110 mm
Rear garage interior height
1120/1240* mm
Door width/height rear garage passengers side
1150/1080 mm
Door width/height rear garage drivers side
1150/1080 mm
Tech. permissible total weight
5000 kg
Weight in running order | Legal tolerance of -/+ 5%
4.035 (3.833 - 4.237) kg
Weight of additional equipment in series production specified by the manufacturer
600 kg
Max. towed load
1600 kg
Sitting places (standard/optional)
4 / 5
Sleeping places
4
Sleeping places max.
5
Type of sleeping places
Single Bed
Rear bed dimensions
2000x1450
Folding bed dimensions
1950 x 1600
Heating system
ALDE WW
Fresh water volume
235 l
Waste water volume
185 l
Battery capacity
2x80 Ah Gel
Price from
POA

chic e-line Mercedes-Benz Sprinter | 51 QB DA

chic e-line Mercedes-Benz Sprinter | 61 XL LE

Special Features

  • Large XL round seating area with long side sofa, optional: electric TV pull-out system for 40″ LED flat screen* behind backrest
  • Large comfort corner kitchen with curved work surface
  • Slide-out storage cabinet integrated in round washroom wall
  • XL washroom, open washing area, spacious round shower, separate toilet room with side window, towel warmer and legroom extension, floor-to-ceiling wardrobe
  • Changing room separable via solid wooden sliding doors and solid wooden door
  • Large lengthways single beds with pull-out comfort access steps
  • Additional wardrobes beneath the lengthways single beds, with additional interior height due to lowering into the double floor
  • TV cabinet in sleeping area, optionally with extra-long TV pull-out system for 24″ LED flat screen

Technical Data

Standard chassis
Mercedes-Benz AL-KO DA low frame 414 CDI
Basic motorisation
Diesel 2,0 l (170 HP/130 kW)
Total length
8750 mm
Total width
2270 mm
Total Height
3105 mm
Wheelbase
4340/800 mm
Double floor height / double floor storage compart- ment
220/460 mm
Standing height in living area
2110 mm
Rear garage interior height
1320 mm
Door width/height rear garage passengers side
1110/1280 mm
Door width/height rear garage drivers side
1110/1280 mm
Tech. permissible total weight
5000 kg
Weight in running order | Legal tolerance of -/+ 5%
4.285 (4.071 - 4.499) kg
Weight of additional equipment in series production specified by the manufacturer
342 kg
Max. towed load
1600 kg
Sitting places (standard/optional)
4 / 5
Sleeping places
4
Sleeping places max.
5
Type of sleeping places
Single Bed
Rear bed dimensions
2000/2000x850
Folding bed dimensions
1950 x 1600
Heating system
ALDE WW
Fresh water volume
235 l
Waste water volume
185 l
Battery capacity
2x80 Ah Gel
Price from
POA

chic e-line Mercedes-Benz Sprinter | 61 XL LE

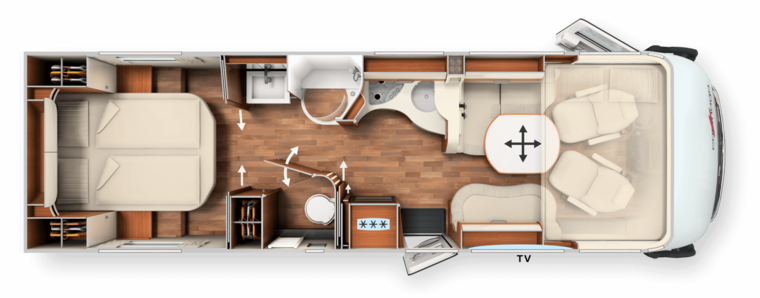

chic e-line Mercedes-Benz Sprinter | 64 XL QB

Special Features

  • Large XL round seating area with long side sofa, optional: electric TV pull-out system for 40″ LED flat screen* behind backrest
  • Large comfort corner kitchen with curved work surface
  • Slide-out storage cabinet integrated in round washroom wall
  • XL washroom, open washing area, spacious round shower, separate toilet room with side window, towel warmer and legroom extension, floor-to-ceiling wardrobe
  • Changing room separable via solid wooden sliding doors and solid wooden door
  • Extra-large queen-size bed in 200 cm king-size format, comfortable sleeping width as far as the foot area
  • Two wardrobes at each side of the queen-size bed
  • Two large drawers at the front of the bed

Technical Data

Standard chassis
Mercedes-Benz AL-KO DA low frame 414 CDI
Basic motorisation
Diesel 2,0 l (170 HP/130 kW)
Total length
8990 mm
Total width
2270 mm
Total Height
3105 mm
Wheelbase
4340/800 mm
Double floor height / double floor storage compart- ment
220/460 mm
Standing height in living area
2110 mm
Rear garage interior height
1120/1240* mm
Door width/height rear garage passengers side
1150/1080 mm
Door width/height rear garage drivers side
1150/1080 mm
Tech. permissible total weight
5000 kg
Weight in running order | Legal tolerance of -/+ 5%
4.295 (4.080 - 4.510) kg
Weight of additional equipment in series production specified by the manufacturer
329 kg
Max. towed load
1600 kg
Sitting places (standard/optional)
4 / 5
Sleeping places
4
Sleeping places max.
5
Type of sleeping places
Single Bed
Rear bed dimensions
2000x1450
Folding bed dimensions
1950 x 1600
Heating system
ALDE WW
Fresh water volume
235 l
Waste water volume
185 l
Battery capacity
2x80 Ah Gel
Price from
POA

chic e-line Mercedes-Benz Sprinter | 64 XL QB
