Carthago Chic s-plus​

Chic s-plus

The powerhouse of the Carthago Liner class on the Iveco Daily 5.6 t / 6.7 t with high-traction rear-wheel drive / dual wheels
with its exclusive and innovative design, pure elegance and enormous living area height of 211 cm, the chic s-plus cannot deny its Liner genes. As well as having abundant payload reserves, the robust Iveco Daily base vehicle can also handle heavy towing loads of up to 3.5 t. The 3.0 l engine with torque of 470 Nm and up to 207 HP is also extremely powerful. The standard driver’s cabin door with convenient access and the original Iveco Liner cockpit provide maximum comfort, ease of access for servicing and additional safety.

THE POWERHOUSE OF THE CARTHAGO LINER CLASS

THE POWERHOUSE OF THE CARTHAGO LINER CLASS

Discover the extraordinary driving experience, top class comfort and unmistakeable Liner genes of the A-class chic s-plus.

The Carthago chic s-plus impresses with its exclusive and innovative design and its generous living area height of 211 cm. As well as having abundant payload reserves, the robust Iveco Daily basic vehicle can also handle heavy towing loads of up to 3.5 t. The 3.0 l engine with torque of 470 Nm and up to 207 HP is extremely powerful.

The A-class chic s-plus impresses in the interior with its exclusive “emotionale” furniture design and a two-level room concept. The large round seating area with luxury living area table and comfort corner kitchen with pull-out kitchen work surface round off the interior perfectly. You can freshen up without being disturbed in the comfort luxury bathroom including completely separable changing room, with lots of room and privacy. The double floor provides a large, heated storage compartment which is conveniently accessible from the outside and the inside.

You can choose between two worlds of style and numerous worlds of living to fulfil your individual requirements for the chic s-plus A-class motorhome.

chic s-plus XL I The XL crown jewel of the Liner class

The XL models of the A-class chic s-plus with a permissible gross weight of 6.7 t live up to their name. This begins with the XL round seating area with the long, pull-out side sofa, and continues with the XL bathroom with separate toilet room, open washing area, spacious round shower and the completely separable changing room.

chic s-plus | highlight.

DOUBLE FLOOR WITH LARGE STORAGE COMPARTMENT

So that you don’t have to leave anything behind on your travels, we put a great deal of value on the amount of storage space during the development of our integrated motorhomes in the chic s-plus model range. We didn’t just concentrate on volume alone, but also the ease of access during loading and unloading, and protection from frost.

Your advantages at a glance

  • Double floor with large heated storage compartment with usable height of up to 78 cm
  • Outside access via several large hatches
  • Convenient interior access via the seat bench cover of the round seating area, the swing-up side seat bench and the large living area floor hatch
  • Large, central through-loading space (interior height up to 20 cm) with deeply lowered storage compartment (usable height up to 20 cm), also conveniently loadable through the XL habitation door via the large, self-supporting living area floor hatch
  • The entire double floor is heated with a climate storage function and underfloor heating effect

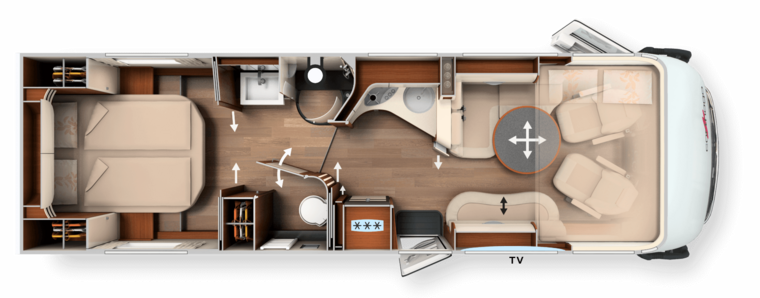

Chic s-plus I layouts & 360° experiences.

You are guaranteed to find the right layout, including all of the associated technical data, using our practical filter function. And/or you can immerse yourself in our new, interactive 360° tours and discover your fully integrated motorhome with all of its special features.

IVECO DAILY

chic s-plus Iveco Daily | 64 XL QB

Special Features

  • Large XL round seating area with long side sofa, optional: TV pull-out system for 40″ LED flat screen behind backrest, electrically operated
  • Large comfort corner kitchen with curved work surface
  • Slide-out storage cabinet integrated in round washroom wall
  • XL washroom, open washing area, spacious round shower, separate toilet room with side window, towel warmer and legroom extension, floor-to-ceiling wardrobe
  • Changing room separable via solid wooden sliding doors and solid wooden door
  • Extra-large queen-size bed in 200 cm king-size format, comfortable sleeping width as far as the foot area
  • Two wardrobes at each side of the queen-size bed
  • Two large drawers at the front of the bed

Technical Data

Standard chassis
Iveco Daily 5,6 t
Basic motorisation
Diesel 3,0 l (207 HP/154 kW)
Total length
8860 mm
Total width
2270 mm
Total Height
3290 mm
Wheelbase
5100 mm
Double floor height / double floor storage compart- ment
200/200 mm
Standing height in living area
2110 mm
Rear garage interior height
1290 mm
Door width/height rear garage passengers side
1150/1200 mm
Door width/height rear garage drivers side
1150/1200 mm
Tech. permissible total weight
6700 kg
Weight in running order | Legal tolerance of -/+ 5%
4.715 (4.479 - 4.951) kg
Weight of additional equipment in series production specified by the manufacturer
1.678 kg
Max. towed load
3500 kg
Sitting places (standard/optional)
4 / 5
Sleeping places
4
Sleeping places max.
5
Type of sleeping places
Single Bed
Rear bed dimensions
2000 x 1450
Folding bed dimensions
1950 x 1600
Heating system
ALDE WW
Fresh water volume
235 l
Waste water volume
200 l
Battery capacity
2x80 Ah Gel
Price from
POA

Chic s-plus | 64 XL QB

chic s-plus Iveco Daily | 61 XL LE

Technical Data

Standard chassis
Iveco Daily 6,7 t
Basic motorisation
Diesel 3,0 l (207 HP/154 kW)
Total length
8600 mm
Total width
2270 mm
Total Height
3290 mm
Wheelbase
4750 mm
Double floor height / double floor storage compart- ment
200/200 mm
Standing height in living area
2110 mm
Rear garage interior height
1450 mm
Door width/height rear garage passengers side
1100/1280 mm
Door width/height rear garage drivers side
1100/1280 mm
Tech. permissible total weight
6700 kg
Weight in running order | Legal tolerance of -/+ 5%
4.645 (4.413 - 4.877) kg
Weight of additional equipment in series production specified by the manufacturer
1.712 kg
Max. towed load
3500 kg
Sitting places (standard/optional)
4 / 5
Sleeping places
4
Sleeping places max.
5
Type of sleeping places
Single Bed
Rear bed dimensions
2000/2000x850
Folding bed dimensions
1950 x 1600
Heating system
ALDE WW
Fresh water volume
235 l
Waste water volume
200 l
Battery capacity
2x80 Ah Gel
Price from
POA

Chic s-plus | 61 XL LE

chic s-plus Iveco Daily | 50 LE

Special Features

  • Large front round seating area with luxury living area table and wide side seat bench
  • Large comfort corner kitchen with curved work surface
  • Slide-out storage cabinet integrated in round washroom wall
  • Changing room separable via luxury washroom door with 3-way function thanks to washroom double door and solid wooden sliding doors
  • Floor-to-ceiling wardrobe integrated in the changing room
  • Large lengthways single beds with pull-out comfort access steps
  • Wardrobes beneath the beds, additional interior height due to lowering into the double-floor
  • TV cabinet in sleeping area, optionally with extra-long TV pull-out system for 24″ LED flat screen
  • Mercedes-Benz SA: “Sky Dream Comfort” above driver’s cabin instead of drop-down bed

Technical Data

Standard chassis
Iveco Daily 5,6 t
Basic motorisation
Diesel 3,0 l (207 HP/154 kW)
Total length
7910 mm
Total width
2270 mm
Total Height
3125/3290*** mm
Wheelbase
4350 mm
Double floor height / double floor storage compart- ment
200/200 mm
Standing height in living area
2110 mm
Rear garage interior height
1450 mm
Door width/height rear garage passengers side
1150/1400 mm
Door width/height rear garage drivers side
1150/1400 mm
Tech. permissible total weight
5600 kg
Weight in running order | Legal tolerance of -/+ 5%
4.195 (3.985 - 4.405) kg
Weight of additional equipment in series production specified by the manufacturer
1.111 kg
Max. towed load
3500 kg
Sitting places (standard/optional)
4 / 5
Sleeping places
4
Sleeping places max.
5
Type of sleeping places
Single Bed
Rear bed dimensions
2050/2070 x 850
Folding bed dimensions
1950 x 1600
Heating system
ALDE WW
Fresh water volume
235 l
Waste water volume
200 l
Battery capacity
2x80 Ah Gel
Price from
POA

Chic s-plus | 50 LE
